Jumbo Bag Belt webbing FIBC big bag loop Cutting Machine FIBC-6/8

Short Description:

FIBC big bag loop Cutting Machine is integrated with automatic scaling, automatic dotting, and automatic cutting and adopts servo motor to control the cutting length which is outstanding for its high speed, low consumed and high automation


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Description

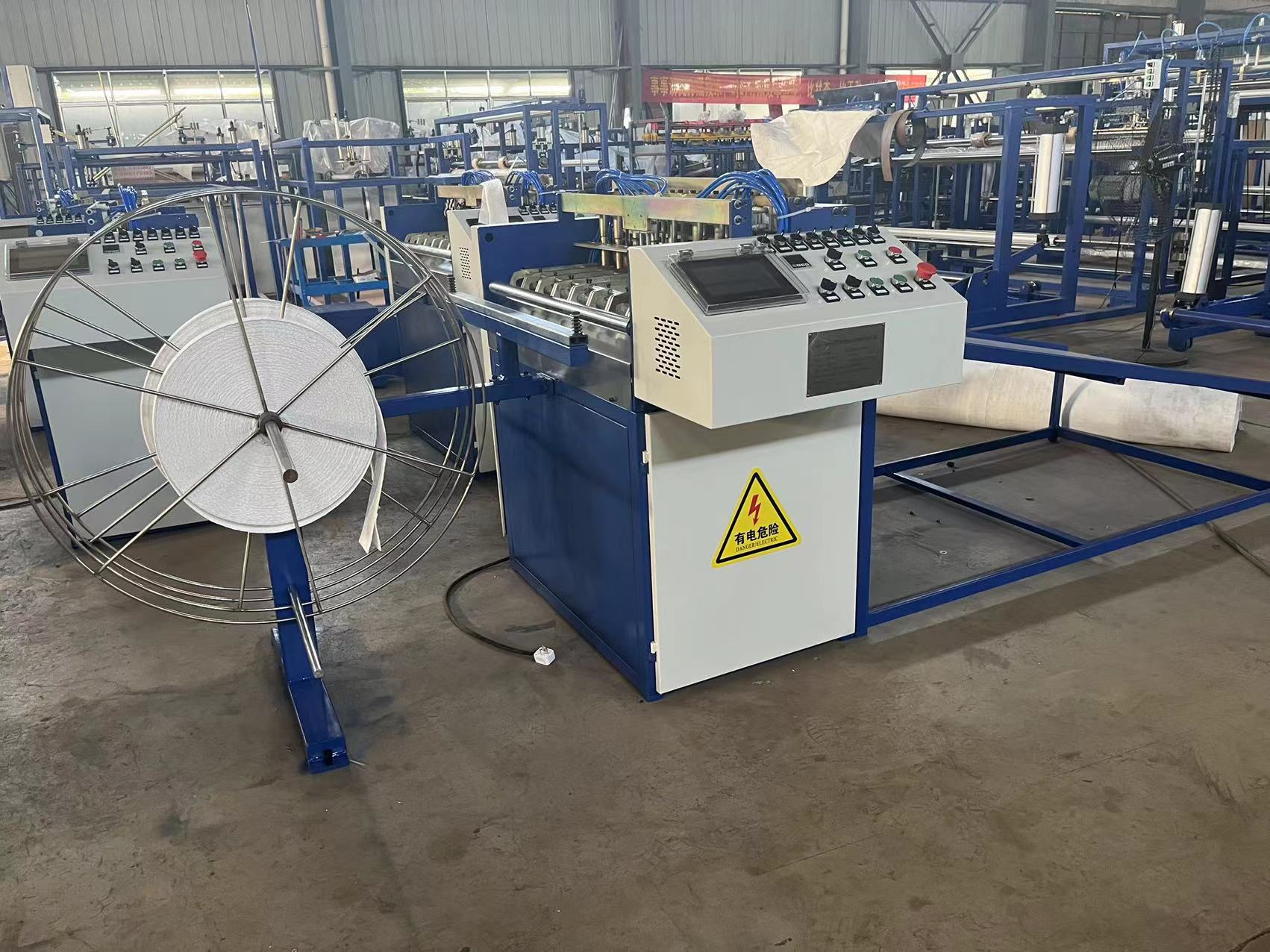

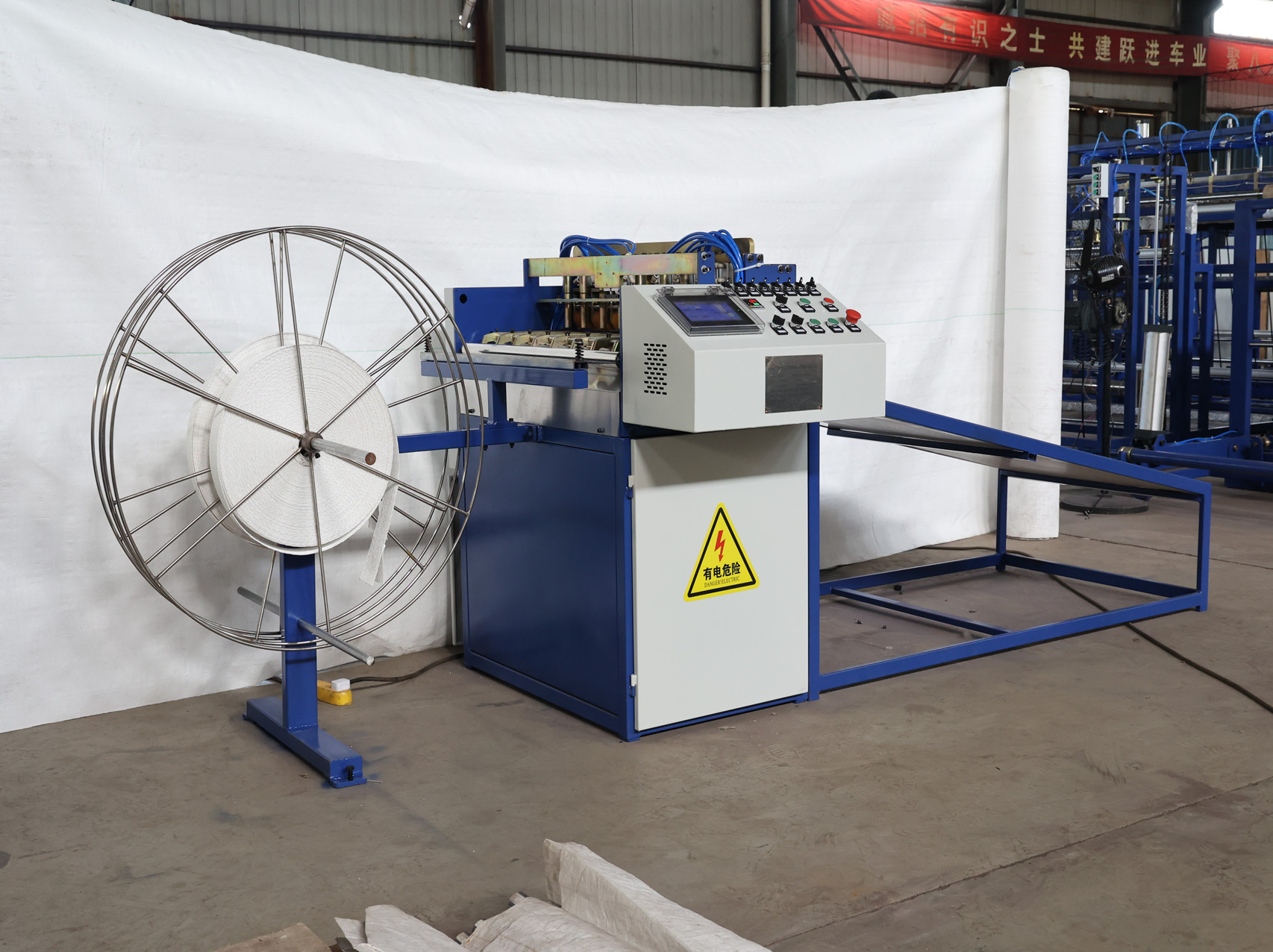

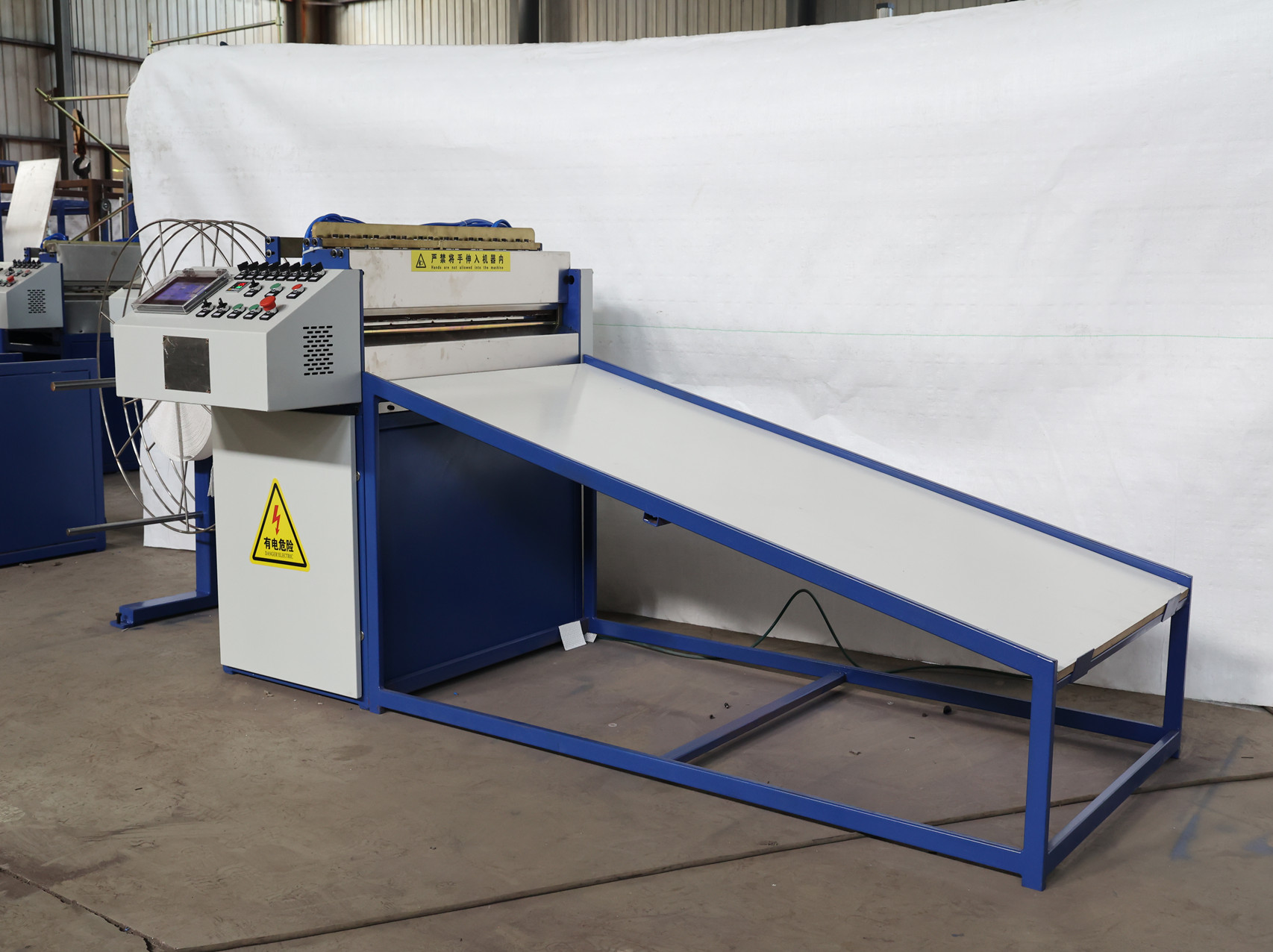

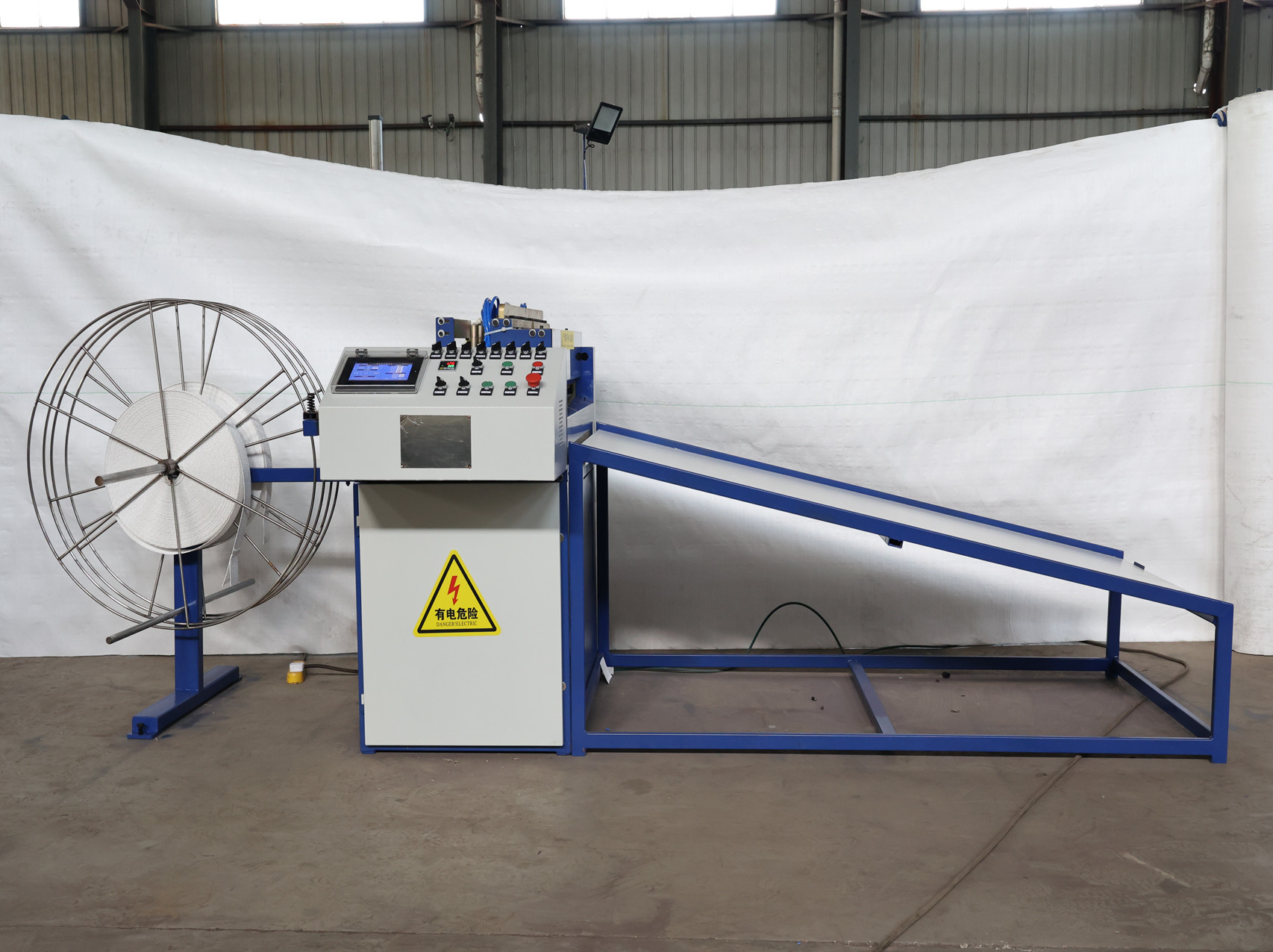

    FIBC--6/8 Belt Cutting Machine is the upgraded version of FIBC--4/6 Belt Cutting Machine Cutting Machine.The frame is widened, the rubber roller and the flower roller are lengthened, and some parts are changed.

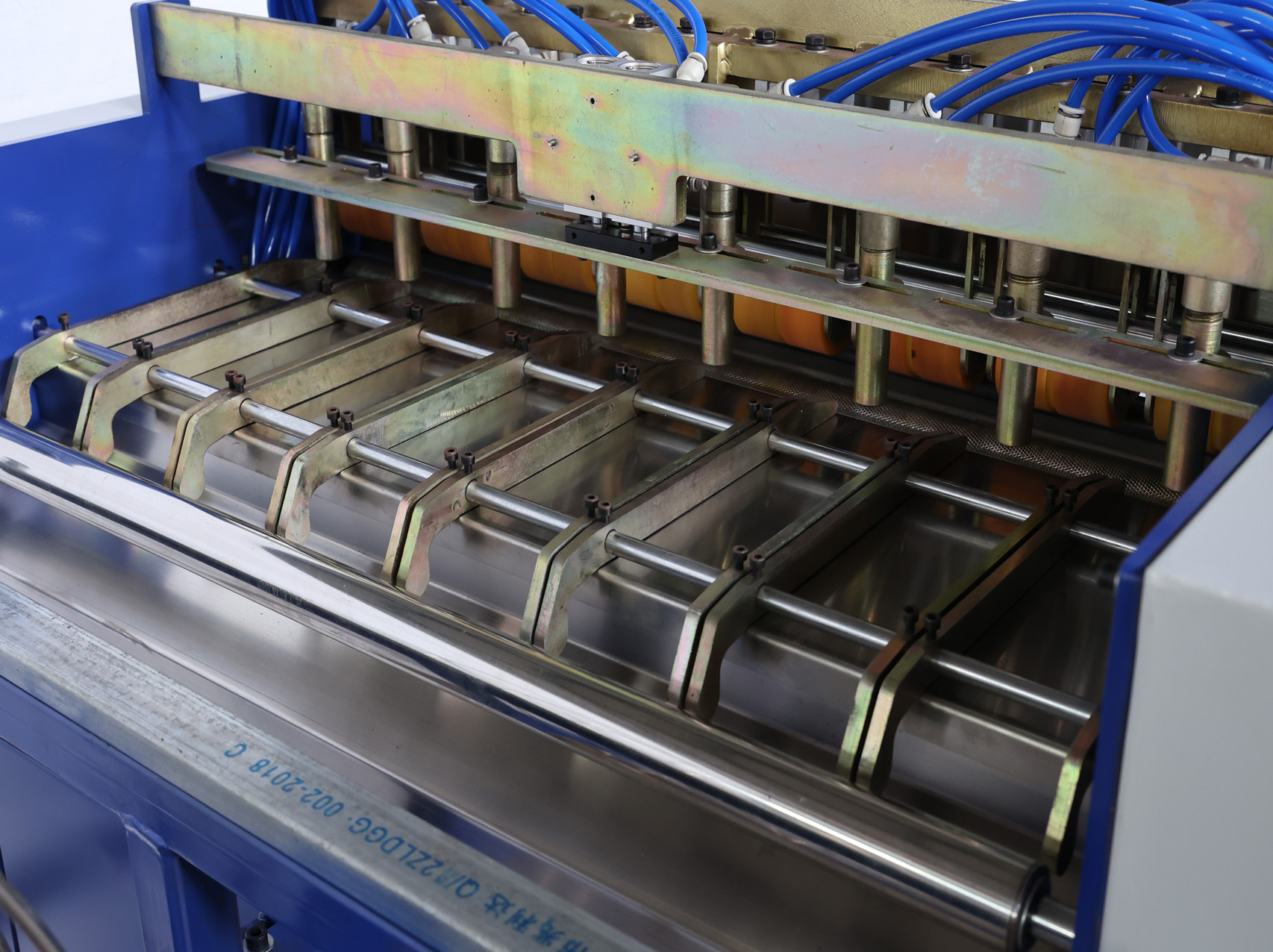

    It can meet the requirements of sling width of 70mm-100 mm, 6-8 strips can be cut at the same time at one time, and the width and narrow degree can be adjusted by adjusting rod according to the bandwidth.

    b0e550ebadde48395aaf7c232d035cb

    Feature

    1. Servo fixed length control is adopted, parameter setting is directly input by human-machine interface.
    2. Industrial computer (PLC) is used to control operation, pressure roller is controlled by solenoid valve and cylinder, with adjustable pressure, simple operation, less waste of the head.
    3. Accurate marking and cutting.
    4. High production efficiency.

    8 belts

    1201

    Specification

    No Item Technical Parameter

    1

    Width of feeding base fabric (mm)

    100mm(Max)

    2

     Cutting length

    0-40000mm

    3

    Cutting/Marking precision

    ±2mm

    4

    Production Capacity

    90-120Pc/min

    5

    Marking Distance

    160mm(Min)

    6

    Whole Power

    3Kw

    7

    Voltage

    220V

    8

    Compressed air

    6Kg/cm2

    9

    Temperature control

    400(Max)

    10

    Whole Weight

    300kg

    11

    Dimensions

    1200*1000*1500mm

    218
    48

    Advantage
    1. VYT Loop cut could cut the set length with heat cutting automatic.
    2. The powerful pneumatic upper and lower feeding guarantee the applications on different.
    material have same high cutting length precision.
    3. Sling width less than 7mm could cut 6 strips and 8 strips , and sling with between 10 -17mm could cut 4-8 strips at the same time.

    Application
    It is suitable for belt , ribbon,bandage, seal belt , parachute rope , pp band, bag belt cutting to length.

    93
    610

    Maintenance

    1. Cylinder lubrication.
    If the cylinder is used for a long time, the lubricating fluid in the cylinder will be lost.

    Filling method:
    Locate the oil-water separator.
    Close the oil-water separator and push the valve manually.
    Loosen the oil cup, add proper amount of lubricant and install it back to the original place. (turbine oil 1 can be used)

    Note: the water cup with drain on the left side and the oil cup on the right side.

    2. The joint between the bearing and the machine is smooth.
    Add proper amount of lubricant regularly.
